AS ENERGIDual Diode Module CC613016C (160A 3000V) Powerex Replacement
| Powerex Part Number | CC613016C |
| Average forward current, IF(AV)M (TC) | 160A (95ºC) |
| Voltage, VRRM | 3000V |
| Package | CC6 |
| Dimensions L×B×H | 94x36x29 mm |
| Datasheet |  |
| Replacement AS ENERGITM | AM-CC613016C |
| Add to Cart | on request
+
–
|
Dual Diode Module AM-CC613016C AS ENERGITM is a replacement, analogue, alternative and equivalent semiconductor device for diode module CC613016C Powerex. Average forward current IFAV – 160 ampere, repetitive peak reverse voltage VRRM – 3000V. The two-position diode-diode module CC613016C have a common anode switching circuit (common anode-anode).
The diode modules are characterized by high electrical and thermal cycling capability, meaning high reliability and long lifetime in intensive operation modes, low current leakage and forward voltage drop. The diode modules are housed in a industry-standard housing making it easy to integrate the device into existing equipment.
Dual diode modules are used in various power equipment - power and control units, for single and three phase bridge configurations, power regulators, AC regulators, DC motors control, AC motor soft starters, converters, controllers of blast furnaces or chemical processes, welding equipment, and as rectifiers for AC converters.
Our modules are offered in several dual and single device topologies for almost all phase control or rectifier applications.
Our company provides a quality guarantee for dual diode modules of 2 years from the date of purchase. When supplying dual diode modules, if necessary, we provide technical passport and certificate of conformity.
The final price for dual diode modules depends on the class, quantity, delivery terms, manufacturer, country of origin and form of payment.
General specifications of Dual Diode Module CC613016C Powerex and Replacement:
| Diode Module specifications | CC613016C | |
| Maximum allowable average forward current | IF(AV)M (TC) | 160 A (95ºC) |
| Max. repetitive peak reverse blocking voltage | VRRM | 3000 V |
| Surge peak forward current | IFSM | 5.2 kA |
| Safety factor | I2t | 140 kA2·s |
| Threshold voltage | VT0 | 0.9 V |
| Forward slope resistance | rT | 1.35 mΩ |
| Temperature | Tj | -40 to 150 ºC |
| Thermal resistance, junction to case | Rth(jc) per module | - |
| Thermal resistance, junction to case | Rth(jc) per junction | 0.23 °C/W |
| Thermal resistance, Sink Lubricated | Rth(c-s) per module | 0.08 °C/W |
| Weight | W | 320 g |
| Package | type | CC6 |
| Dimensions | L×B×H | 94x36x29 mm |
| Replacement AS ENERGITM | type | AM-CC613016C |
| Datasheet | |
|
Part numbering guide for Dual Rectifier Diode Module Powerex and Replacement:
| A | M | – | CC6 | 1 | 30 | 16 | C |
| A | – |  AS ENERGITM |
| M | – | Product group: Module. |
| CC6 | – | Package type. |
| 1 | – | Diode modules. |
| 30 | – | Voltage class VRRM / 100. |
| 16 | – | IF(AV) code, Amp. |
| C | – | Sufix Identifier: None, B, C or D |

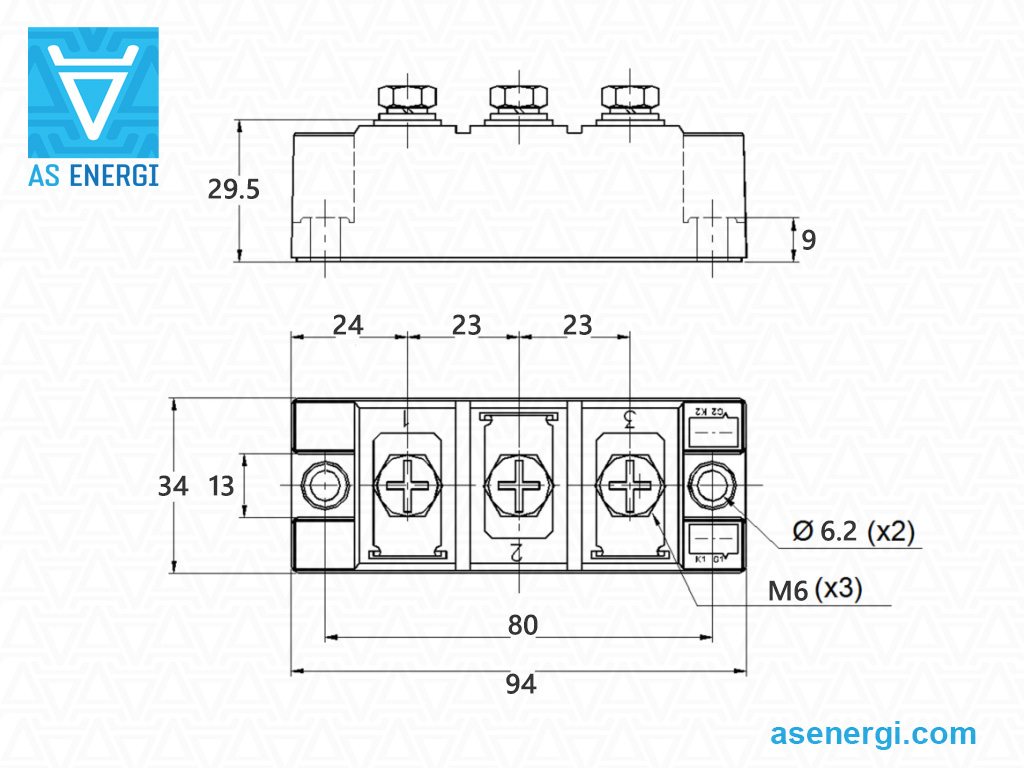

Dimensions of Dual Diode Module CC613016C and Replacement AM-CC613016C:
CC6

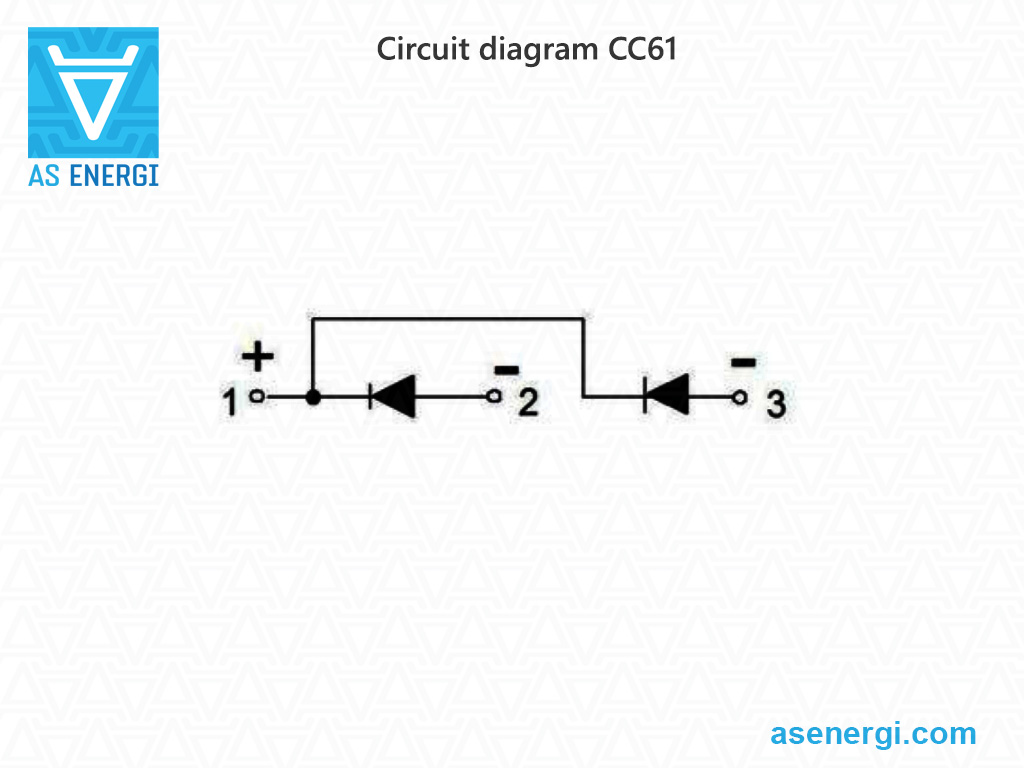

Wiring diagram of Dual Diode Module CC613016C and Replacement AM-CC613016C:
|
|
